When it comes to optimizing engine performance, the intake manifold is one of the most important yet often overlooked components. Its role extends far beyond simply directing air into the cylinders. The design, material, and configuration of the intake manifold directly affect airflow, fuel-air mixture quality, combustion efficiency, and ultimately the balance between power, torque, and fuel economy.
This article explores how intake manifold design impacts engine performance, the different types of manifolds, and what car owners should know about upgrading or replacing them.
What Is an Intake Manifold?

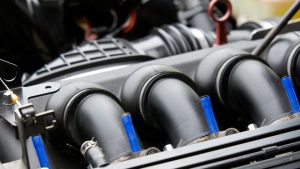

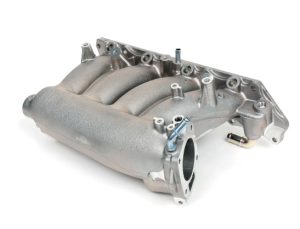

The intake manifold is a network of passages, usually cast from aluminum, plastic composites, or sometimes magnesium, that distributes air — or an air-fuel mixture in carbureted engines — into the combustion chambers. It ensures that each cylinder receives an equal and consistent supply of air, which is critical for efficient combustion.
Key functions of an intake manifold include:
-
Distributing air evenly to each cylinder.
-
Mixing fuel with air (in older carbureted systems).
-
Serving as a mounting location for throttle bodies, sensors, and fuel injectors.
-
Acting as part of the engine’s cooling system in some designs.
The Science of Airflow
Airflow dynamics inside the intake manifold are crucial. The shape and length of the runners (the individual passages leading to each cylinder) determine how efficiently air enters the combustion chamber. Engineers carefully design manifolds to balance airflow velocity and volume depending on whether low-end torque or high-RPM power is prioritized.
Key considerations:
-
Air velocity: Faster-moving air improves cylinder filling at lower RPMs.
-
Plenum volume: A larger plenum can provide more air for high-RPM operation.
-
Runner length: Longer runners enhance torque at lower RPMs, while shorter runners favor high-RPM horsepower.
Types of Intake Manifold Designs
Different designs exist to optimize performance depending on the type of vehicle and its intended use.
| Design Type | Description | Best Application |
|---|---|---|
| Single-Plane | A common plenum feeding all runners directly. | High-RPM performance engines, racing applications. |
| Dual-Plane | Split plenum design, each side feeding half the cylinders. | Street cars, balanced torque and horsepower. |
| Variable-Length | Features adjustable runners that change length depending on RPM. | Modern cars requiring both low-end torque and high-end power. |
| Individual Throttle | Each cylinder has its own throttle body for precise airflow control. | Sports cars, motorcycles, and high-performance engines. |
How Intake Manifold Design Affects Engine Efficiency
The intake manifold’s geometry directly influences:
-
Volumetric Efficiency
-
Determines how effectively cylinders fill with air.
-
Optimized designs can significantly improve combustion efficiency.
-
-
Torque Curve
-
Long runners boost torque at low speeds, making cars more responsive in everyday driving.
-
Short runners shift the torque curve higher, improving acceleration at higher RPMs.
-
-
Fuel Efficiency
-
Better airflow distribution means less wasted fuel and more complete combustion.
-
-
Emissions Control
-
Uniform airflow reduces hot spots and incomplete combustion, leading to cleaner exhaust gases.
-
Common Problems with Intake Manifolds
Like any engine component, intake manifolds can wear out or fail, affecting both efficiency and reliability.
Signs of intake manifold issues:
-
Rough idling or engine misfires.
-
Coolant leaks (in designs where coolant passages are integrated).
-
Reduced engine power.
-
Poor fuel economy.
-
Check Engine Light triggered by air-fuel imbalance.
| Problem | Cause | Effect on Engine |
|---|---|---|
| Vacuum leaks | Cracked manifold or damaged gasket | Lean mixture, misfires, rough idle. |
| Carbon buildup | Poor fuel quality or EGR deposits | Restricted airflow, loss of power. |
| Warped or cracked housing | Overheating or material fatigue | Coolant loss, reduced performance, possible damage. |
| Uneven air distribution | Poorly designed runners or clogging | Uneven combustion, higher emissions. |
Benefits of Upgrading Your Intake Manifold
Upgrading to a high-performance intake manifold can bring noticeable improvements, especially for tuned engines.
Advantages include:
-
Increased horsepower and torque.
-
Improved throttle response.
-
Better fuel distribution.
-
Enhanced reliability with stronger materials.
Popular upgrades:
-
Switching from dual-plane to single-plane for racing.
-
Installing variable-length manifolds for versatile performance.
-
Adding individual throttle bodies for maximum precision.
Maintenance and Replacement Tips
To keep your intake manifold in peak condition:
-
Inspect for leaks during routine service.
-
Clean carbon deposits regularly, especially in direct-injection engines.
-
Check gaskets and seals to prevent vacuum or coolant leaks.
-
Replace when cracked, warped, or severely clogged.
When replacement is necessary, always opt for OEM-quality or performance-grade parts. For reliability and fitment, you can easily buy Intake Manifold online.
Advantages and Challenges of Different Manifold Materials
| Material | Advantages | Challenges |
|---|---|---|
| Aluminum | Durable, good heat dissipation, widely available. | Heavier than plastic, more expensive. |
| Plastic Composites | Lightweight, cost-effective, smooth internal surfaces. | Can crack under high heat, less durable. |
| Magnesium | Very lightweight, good strength. | Costly, prone to corrosion if not treated. |
| Carbon Fiber | Extremely light, excellent for racing. | Expensive, not common in mass-market vehicles. |
Conclusion
The intake manifold is far more than a simple air channel — it is a precision-engineered component that dictates how efficiently an engine breathes, burns fuel, and produces power. Whether designed for low-end torque in daily driving or maximum horsepower in racing, its impact is undeniable.
Proper maintenance ensures optimal performance, while upgrades can unlock hidden potential in your engine. If your vehicle shows signs of manifold wear or if you’re looking to enhance performance, don’t wait — buy Intake Manifold online and restore both efficiency and power to your engine.
