Pistons and piston rings are two of the most critical components within an internal combustion engine. Together, they perform the essential functions of maintaining cylinder compression, controlling oil consumption, and transferring the explosive power of combustion into mechanical energy that drives your vehicle.
When functioning properly, pistons and their rings ensure that your engine runs efficiently, cleanly, and reliably. When worn or damaged, they can cause serious performance issues, excessive emissions, and even engine failure.
In this article, we’ll break down the structure, function, and signs of wear in pistons and piston rings — and help you understand when replacement is needed.
What Are Pistons?
A piston is a cylindrical component that moves up and down within the engine’s cylinder. It is connected to the crankshaft via a connecting rod and plays a direct role in generating the engine’s mechanical power by converting the energy of expanding gases during combustion.
Key Functions of Pistons:
-
Compress the air-fuel mixture before ignition
-
Absorb the energy from combustion and transfer it to the crankshaft
-
Help expel exhaust gases during the exhaust stroke
What Are Piston Rings?

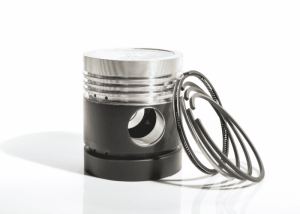

Piston rings are small, metallic rings fitted into grooves on the outer diameter of the piston. Most pistons use three rings per cylinder — two for compression and one for oil control.
Types of Piston Rings and Their Functions:
| Ring Type | Function |
|---|---|
| Compression Ring | Seals combustion gases and ensures maximum pressure |
| Second Compression | Aids in gas sealing and helps control oil |
| Oil Control Ring | Scrapes excess oil from cylinder walls, reducing burn-off |
How Pistons and Rings Work Together
During the four-stroke engine cycle (intake, compression, combustion, exhaust), the piston and piston rings must seal the combustion chamber tightly while allowing smooth movement up and down the cylinder walls.
Their Combined Roles:
-
Maintain Compression: Piston rings form a seal between the piston and cylinder wall, keeping combustion gases inside.
-
Control Oil Use: The oil control ring wipes oil off the walls and redistributes it to prevent excess burning.
-
Transfer Force: The piston transmits force from combustion to the crankshaft, driving the car forward.
What Happens When Pistons or Rings Fail?
Wear and damage to pistons and piston rings can lead to loss of compression, increased oil consumption, and poor performance.
Common Symptoms of Worn Pistons or Rings:
| Symptom | Possible Cause |
|---|---|
| Blue smoke from exhaust | Oil leaking past oil control rings |
| Low engine compression | Broken or worn compression rings |
| Poor fuel economy | Incomplete combustion from low compression |
| Engine misfires | Leaking compression and reduced pressure |
| Excessive oil consumption | Oil seeping into combustion chamber |
Causes of Piston and Ring Wear
Several factors can accelerate wear or failure in pistons and rings:
-
Lack of proper lubrication
-
Overheating due to poor cooling system
-
Use of low-quality oil
-
Detonation or pre-ignition (engine knock)
-
Poor air filtration allowing debris into cylinders
Maintenance and Replacement
Pistons and piston rings are not considered routine maintenance items, but they may need replacement if symptoms appear or during a full engine rebuild.
Tips to Extend Life:
-
Change engine oil and filter regularly
-
Use the recommended oil grade
-
Avoid aggressive driving when engine is cold
-
Keep the cooling system in good condition
Replacement Guidelines:
| Condition | Action Required |
|---|---|
| Compression loss in one or more cylinders | Perform compression/leak-down test |
| Blue smoke or high oil use | Inspect oil control rings |
| Engine rebuild or overhaul | Replace pistons and rings together |
Choose High-Quality Parts
When replacing pistons and piston rings, it’s crucial to use parts that match OEM specifications and are made from high-quality materials to withstand heat and pressure.
-
Buy Piston Rings online – Find rings that ensure precise sealing and long-lasting durability.
-
Buy Engine Pistons online – Explore top-quality engine pistons designed to perform under high stress.
Conclusion
Pistons and piston rings are foundational to your engine’s ability to produce power and maintain efficiency. Together, they seal combustion pressure, manage oil flow, and help convert fuel into motion.
Neglecting issues related to piston wear or ring damage can result in reduced performance, excessive emissions, or complete engine failure. Recognizing early warning signs and choosing quality replacement parts can keep your engine running smoothly for many years.
Make sure your engine is equipped with reliable, high-performance components.
